8CH Adas DMS Bsd Passenger Counting Mdvr System

1.Product Overview
AI Intelligent MDVR is an embedded artificial intelligence product based on deep visual learning, with an accuracy rate of more than 98% in actual scene applications. The product integrates the active safety vision algorithm in the traditional MDVR, which can not only realize the surveillance video, but also carry out the visual analysis of the car and people, judge the driving state of the vehicle and the driving state of the driver, timely correct the driver's irregular and tired driving behavior, and avoid traffic accidents. The system is widely used in trucks, buses, buses, school buses, logistics vehicles, dangerous goods transport vehicles, taxis, Internet hailing cars, ambulances and other commercial operation vehicles.

The detailed features are as follows:
Industrial design, stable and reliable, easy to install
Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 8 channels.
Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
Support 8 channels of video and audio input, frame rate and image quality are adjustable
Support 1x2.5inch HDD/SSD +1xTF Card Storage
Built-in Farad capacitor. The video content has power-off protection function
Support video loss alarm function
Independent delay Power shutdown, can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc
Support HDD/SSD, TF card and U disk to upgrade firmware, support network remote firmware upgrade.
Supports 2 USB ports, the front can be connected to a USB drive to export videos or upgrade firmware, and the back can be connected to a fireproof box to backup videos
Support 8 x IO alarm input, 2 x IO alarm output
Support 2 x RS232 and 1 x RS485
Insert the intercom handle for two-way communication between the platform and the device
Support pulse vehicle speed. Optional
Support 4G, GPS, LAN(RJ45)
MD6208-G6 support WiFi function
Optional ADAS ,DMS, BSD, FACE Recognition and Passenger counting system .
Note: Up to 5 AI functions can be supported simultaneously, with 1 AI function per channel for BSD cameras and 1 AI function per channel for passenger cameras

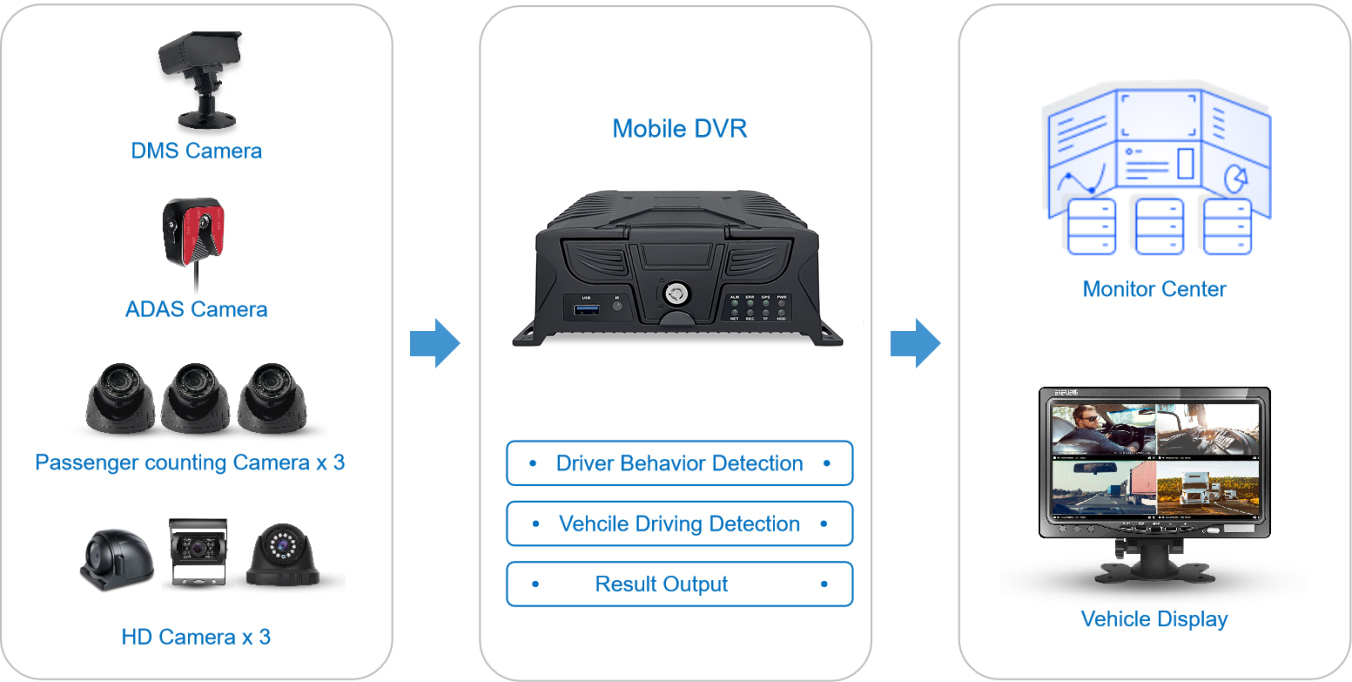

8CH Adas DMS Bsd Passenger Counting Mdvr System Images
